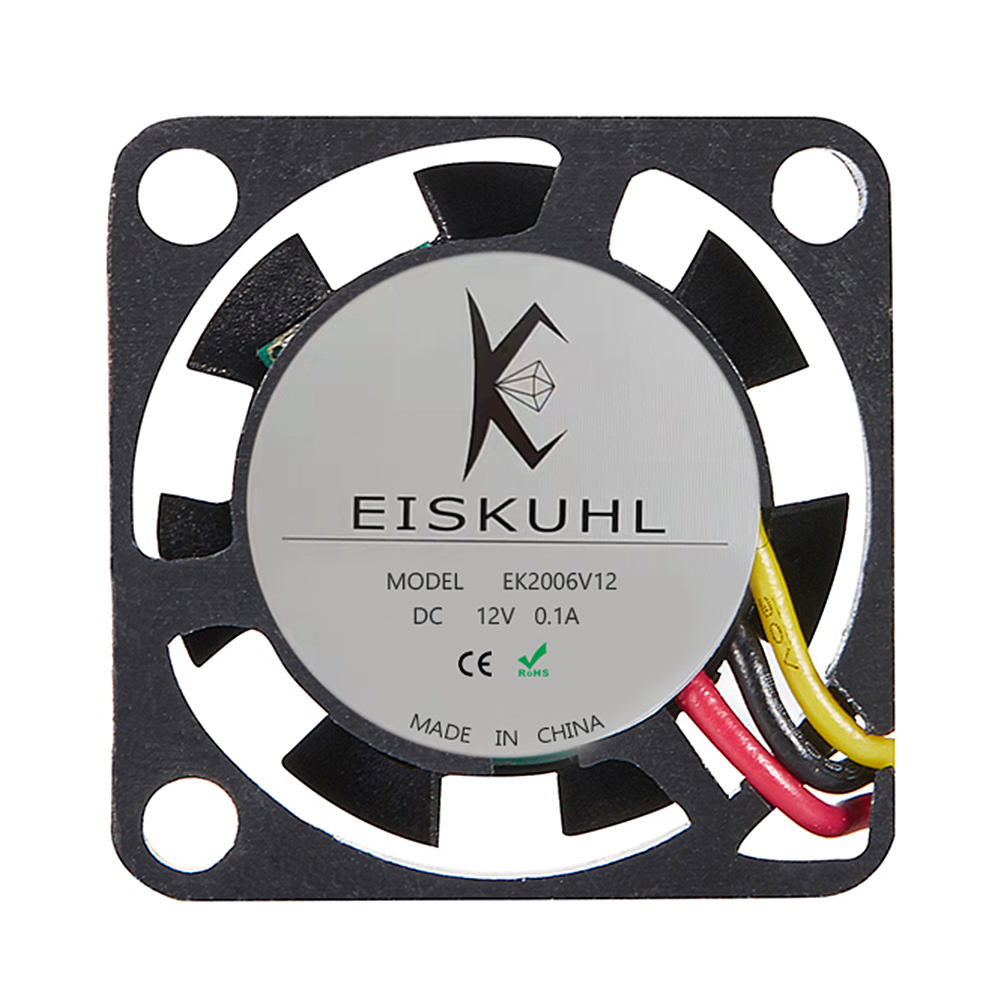

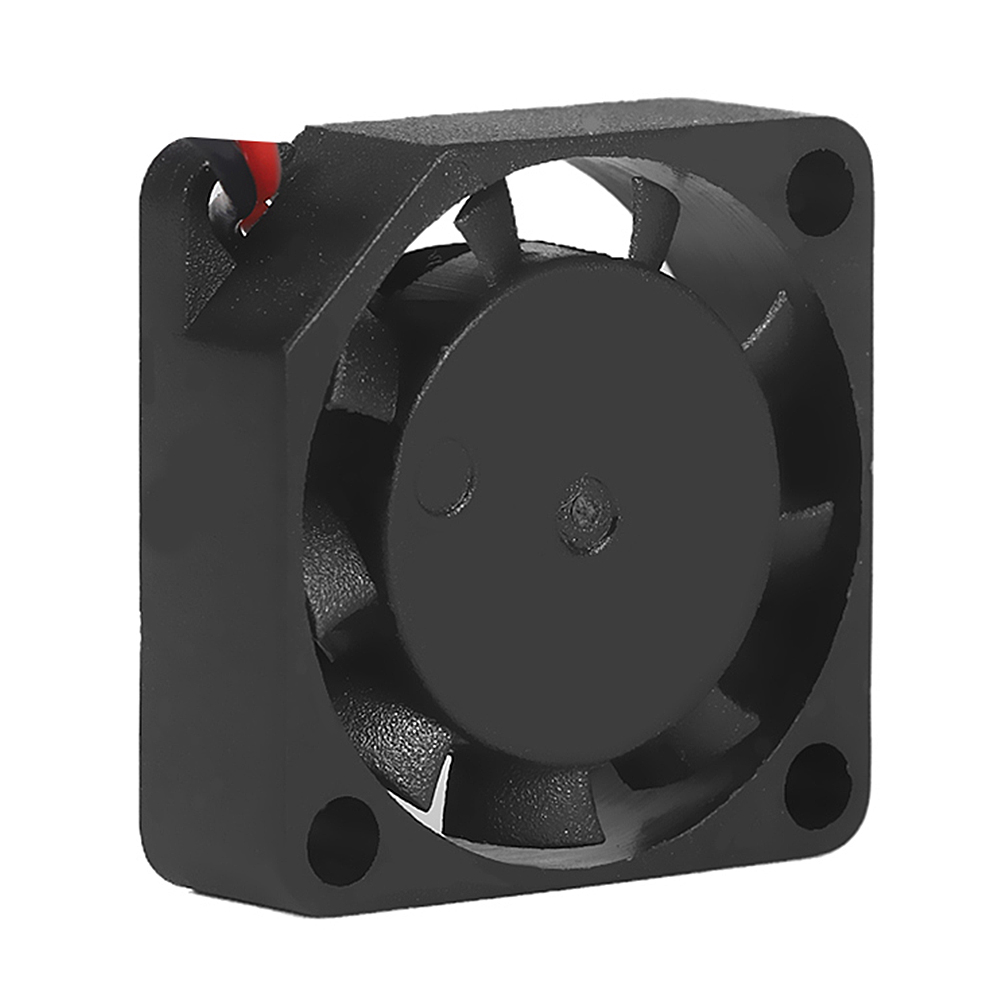

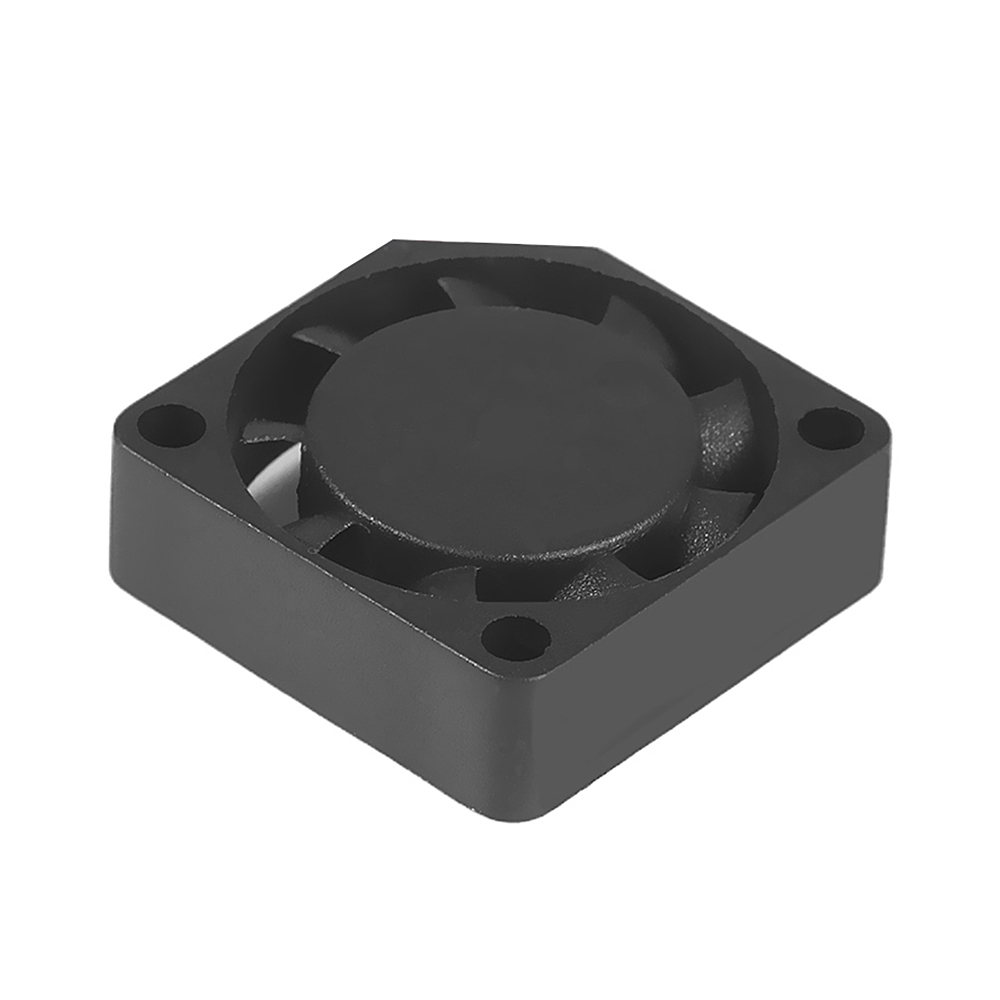

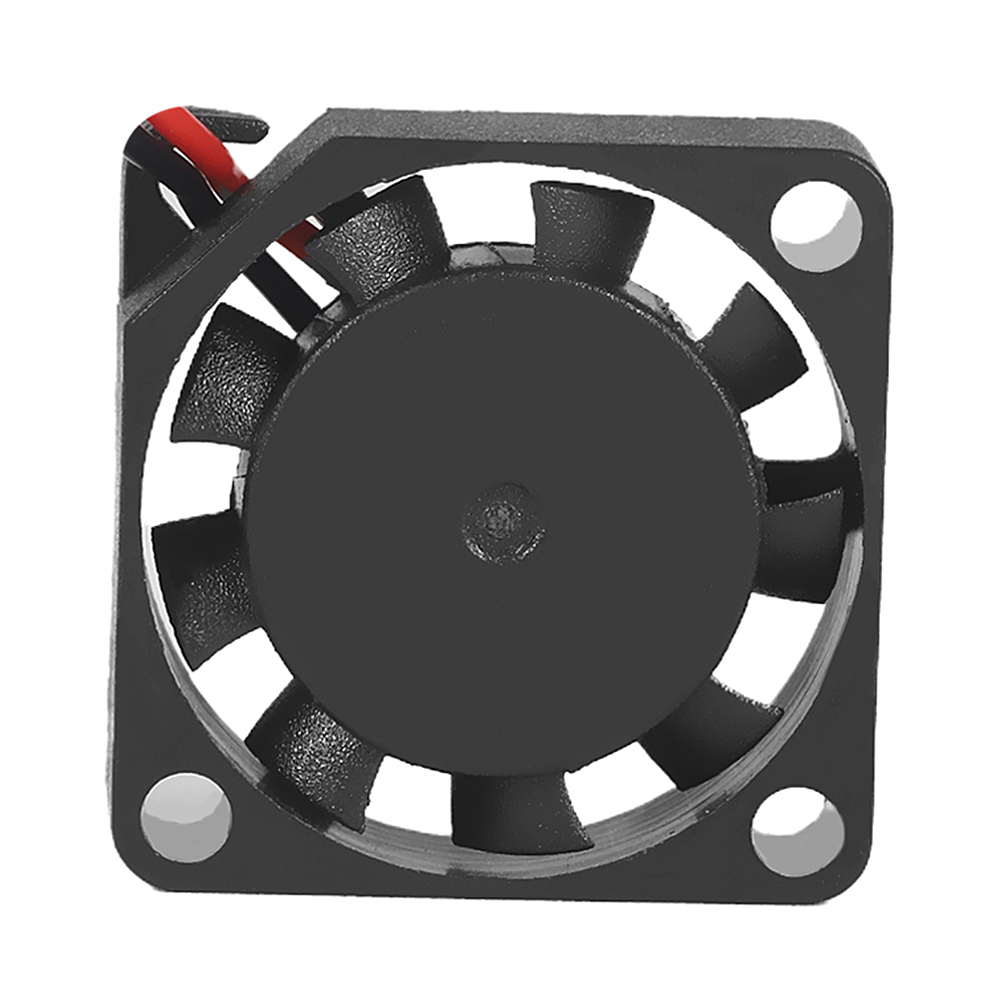

Model Size: 20*20*06mm
Motor: DC Brashless fan motor
Bearing: Ball/Sleeve/Hydraulic
Weight: 3.5g
No.of Pole: 4Poles
Direction of rotation:Clockwise, viewed toward rotor
| Dimensions | 20x20x06mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Sleeve bearing system |
| Life expectance | 30,000 hrs by sleeve bearing system |
| Cable | UL1571AWG#28 (+) Red, (-) Black, stripped and tin-plated |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Optional wire | "Sensor"yellow/"PWM"blue |
| Type of Voltage | DC | |
| Nominal Valtage | in V | 12 |
| Airflow | in CFM | 1.12 |
| Air Pressure | in mmH2O | 2.69 |
| Speed | in RPM | 12000 |
| Rated Current | in A | 0.16 |
| Power Input | in W | 1.2 |
| Sound Pressure Level | in dB(A) | 31.2 |
| Nominal Valtage range | in V | DC7~13.5V |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~80°C (Non-condensing) |
| Operating Humidity | 5%~95%RH |
| Storage Humidity | 5%~95%RH |
